3D wheel aligning system used car repair equipment for workshop
Sincerely looking for distributor in different country,thanks for kind contacting !
Product feature
1. Windows 7 ;
2. Easy to operate with guiding machine menu,to read alignment database within 3minutes ;
3. The fault of machine can be reduced as no electric element & battery & transmission cable & bluetooth & infrared ray on the target plates ;
4. HP computer , movable cabinet ;
5. Calibration made before delivery, easy to install and use , no influenced by working site ;
6. Wide range of sight with high performance digital camera ;
7. Different colors of led to show different step of operation ;
8. User can operate different steps according to color changing on screen ;
9. Set with Volkswagen dedicated application,can measure and adjust toe-arc for A6,B5;
10. 26kinds of language for different countries and districts ;
11. Suit for measurement of vehicle with super-low chassis ;
12. OEM and other 25000 vehicle database .
Technic data
Item | Measurement Accuracy | Measurement Range | Total Measurement Range |
Camber | ±0.01° | ±8° | ±8° |
Caster | ±0.05° | ±19° | ±19° |
Front wheel KPI | ±0.02° | ±19° | ±19° |
Total Toe | ±0.01° | ±2° | ±8° |
Rear wheel thrust angle | ±0.01° | ±2° | ±4° |
Toe-out on turn | ±0.08° | ±2° | ±40° |
Axle offset of Rear wheel | ±0.02° | ±2° | ±4° |
Wheel tread difference | ±0.03° | ±2° | ±8° |
Front setback | ±0.02° | ±2° | ±4° |
Rear setback | ±0.02° | ±2° | ±4° |
Wheel tread | ±0.64cm(±0.25cm) | <265cm(<105in) | <265cm(<105in) |
Wheelbase | ±0.64cm(±0.25cm) | <533cm(<210in) | <533cm(<210in) |
Standard accessories include ,
n Camera beam x 1
n Computer x 1
n Printer x 1
n Turnplate x 2
n Brake lock x 1
n Steel wheel lock x 1
n Target plate x 4
n Wedge x 1
n Hanger for clamp x 4
Packing : total 2cartons ,217kgs , 1.40cbm
n 1840x765x750mm , 1ctn
n 2900x370x320mm , 1ctn
Our service
Warmly thanks for your any kind suggestion for our services and machine , we will improve better and better in the near future.
1) Warranty : 12months
Free parts will be sent by courier or post if machine goes wrong during 12months .
2) Delivery time : 10days after payent received .
3) 1set sample order is acceptable .
4) Method of payment : T/T , WESTERN UNION ,PAYPAL , TRADE ASSURANCE
5) Certificate : TUV , ISO , CE
Our advantages
1) Products meet different quality standard all over the world,no worry about the reselling .
2)10years export experience , well known about various of trade term .
3)Stronger shipping supported ,ensure reasonable cost and delivery in time .
4) 7 x 24 online customers service
5) Various payment way can be accepted
Contact details
You can press " CHAT NOW " or " CONTACT SUPPLIER " to contact us .
Also by other contact ways ,
Contact person : Emma Wang
Email: sales at bestrising.com
Skype : risingsuntools at hotmail.com
Tel : 0086 18932251550
Whatsapp : 0086 18932251550
Viber : 0086 18932251550
Wechat : 0086 18932251550
|
|

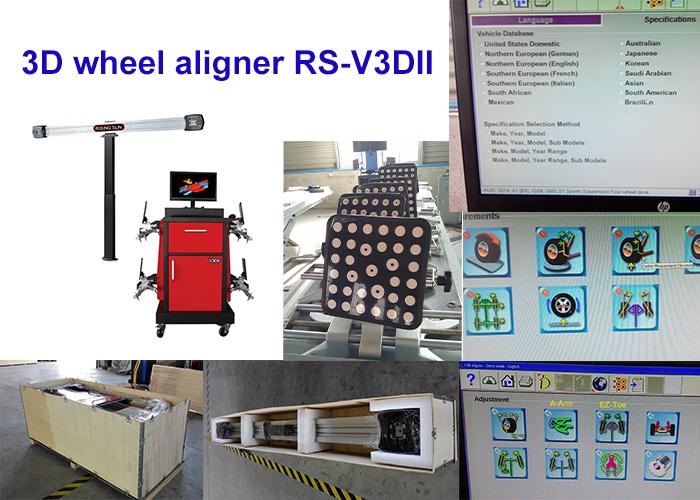

3D wheel aligning system used car repair equipment for workshop Images
|
